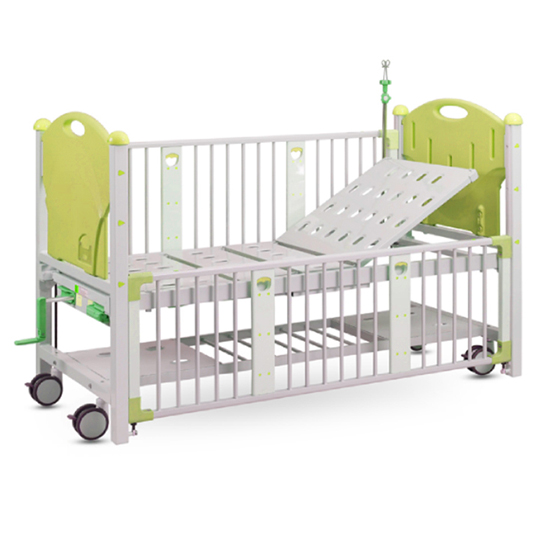

① Materia : powder coated steel bed frame, detachable PP head & foot board.
② Overall dimension : 1910mm(L)*930mm(W)*1260mm(H)
Bed board dimension : 1775mm(L)*710mm(W)
③ Height (from bed board to ground) : 575mm
④ Sliding steel protective railing
Side rails dimension : 1780mm*570mm
The distance between the protective pipes of the side rail is less than 80mm With three gears adjustable : 80mm/310mm/500mm(Height from side rail to bed board)
⑤ Two functions are controlled by cranks Backrest : 0 - 70° Knee gatch : 0 - 45°
⑥ 360 ° swivel castors (Dia. 125mm), with individual brakes.
⑦ Net weight : 101KG
⑧ Standard accessory : I.V. Pole
