Technical parameter
Model | LS-H05 |
Overall dimensions ( L*W*H ) | 2050*960*560mm (including mattress) |
Internal dimensions ( L*W*H ) | 1900*900*500mm (excluding mattress) |
Toilet opening dimensions ( L*W*H ) | 310*220mm |

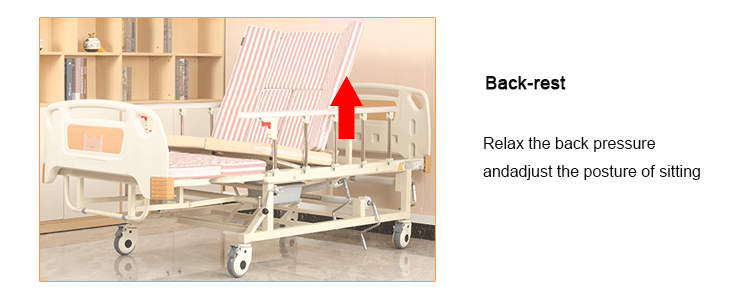

Back elevation angle | 0 - 70° |

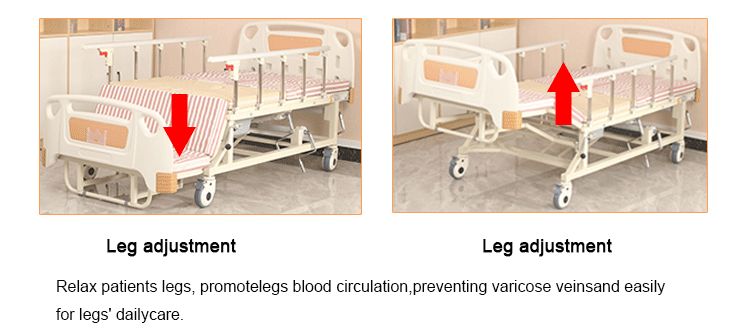

Leg elevation angle | +20° to -65° |
Side turning angle | 0 - 45° |
Safe working load | 240KG |
Standard configuration
ABS headboard and footboard | 2 pieces |
Silent wheels | 4 pieces |
Aluminum alloy guardrails | 2 pieces |

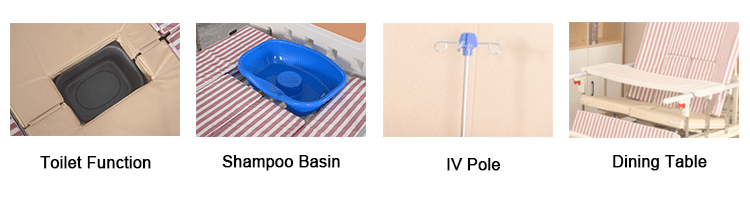

Dining table | 1 piece |
6cm mattress | 1 piece |
Color cotton bedspread | 1 piece |
Washbasin | 1 piece |
Urinal | 1 piece |
IV stand | 1 piece |
Functional Features:
1) There are three hand cranks: one for manual left and right turning, one for manual back elevation, and one for manual leg elevation.
The toilet conversion is done with a quick-release lever.

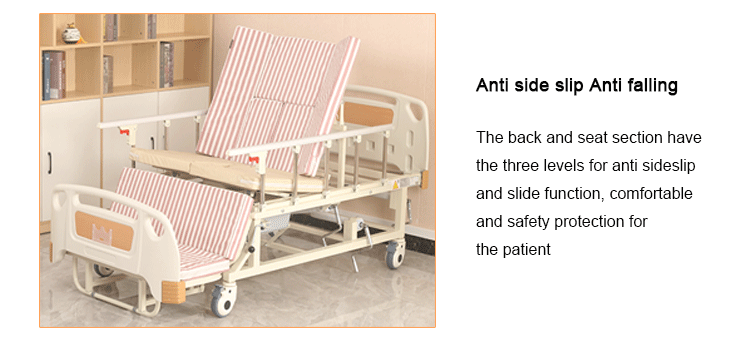

3) Anti-slip and anti-slide function when elevating the back
4) Hand cranks
5) Rocker arms
6) Aluminum alloy guardrails
7) Head and foot boards
8) Silent casters
9) Mattress
10) One-second quick-opening toilet door
11) Leg support
12) Back elevation pulley design
13) Side turning pulley design
14) Rounded corner frame design
15) Adjustable IV stand
16) The legs are designed with an arc-shaped contact surface
17) The bed can support a weight of 240kg.
Materials:
1) Tubing: The bed frame uses 40×60 square tubes with a thickness of 1.2mm. The bed surface uses 15×30 square tubes with a thickness of 1.2mm.
All bed connection parts are made of thick-walled tubes with a thickness of 2.75mm or more or 3mm cold-rolled steel plates formed by stamping.
2) Welding process: The bed frame and bed surface are fully welded by robots, ensuring a firm and reliable connection.
The welding areas are smooth and fSilent wheelslat, making the bed sturdy and durable.
3) Bed surface coating process: The bed surface is sandblasted with steel shot to remove rust and then electrostatically sprayed.
The coating is anti-static powder, resistant to acid and alkali corrosion, and resistant to fading.
If you have any questions about hospital nursing beds, please contact us！
